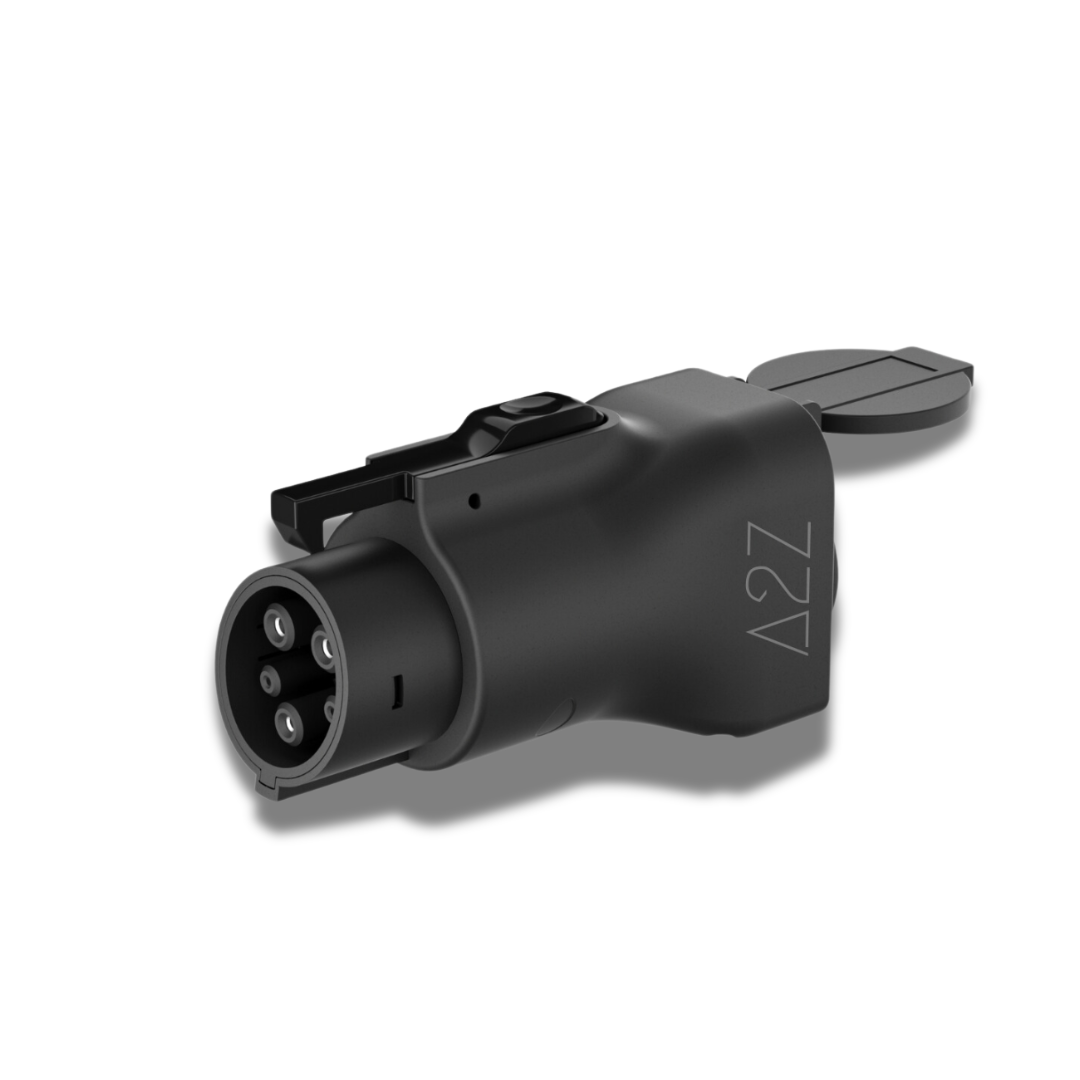

A2Z EVSE J1772 V2L Adapter (NEMA 5-20)
J1772 Vehicle to NEMA 5-20 Outlet
Dealer pricing on request
- Type
- AC
- Rated Voltage
- 120V
- Rated Current
- 20A
- Every unit electrically and physically tested before it ships
- Real people on the phone — no bots
- Ships domestically from US and Canadian warehouses
- Private label, packaging and custom lengths for dealers
Turns a V2L-capable J1772-port vehicle into a 120V / 20A power source for tools, appliances and backup power. For V2L-capable vehicles only.
- Vehicle side: J1772 inlet (V2L-capable vehicles)
- Output: NEMA 5-20 receptacle
- Rating: 120V AC · up to 20A or vehicle allowance
- Protection: IP54 · over-temperature and power-cord detection switches
- Operating temp.: -30°C to 50°C
- Certifications: ETL-listed receptacle · CE · FCC
Ideal for: dealers, distributors, fleets and OEM/whitelabel programs.
Quote-only. Request a quote for volume pricing, OEM/whitelabel and lead times.
| Type | AC |
|---|---|
| Rated Voltage | 120V |
| Rated Current | 20A |
| Over-Temperature Sensor Switch | Yes |
| Power Cord Detection Switch | Yes |
| Certification | ETL-listed NEMA 5-20 receptacle, 120V / 20A |
| Included Pouch | Yes |
| Warranty | 12 months |
Can I get this with my own branding or packaging?
For dealer and distributor programs we can supply private-label housings, colours and packaging. Ask the B2B team for minimums and lead times.
Which vehicles and chargers does it work with?
Read the charger → vehicle path above: the left side plugs into the charger, the right side into the vehicle. AC, DC and V2L paths are not interchangeable. For DC fast charging, also confirm network access in the vehicle’s app.
How do I get the price list and datasheet?
Use Request a quote on this page or call the B2B line. We’ll send the datasheet, current pricing and model guidance for your market.
What warranty and after-sales support is included?
A 12-month manufacturing-defect warranty on adapters, with a real support team by phone. Commercial EVSE warranty terms are confirmed in each quote.
Do chargers support OCPP or app control?
Commercial DC stations support OCPP 1.6 / 2.0. Wall-mounted AC models offer Wi-Fi, 4G, Bluetooth and RFID options depending on configuration.
Support every step of the way
Defect coverage
If a product fails from a manufacturing defect, we repair or replace it — and handle the claim quickly.
Training & materials
Counter guides, product imagery and connector education so your team recommends the right part.
Engineering support
Configuration help for custom lengths, regional plugs and commercial site projects.
Related products
Need another combination?
Adapters across NACS, CCS1, CCS2, CHAdeMO, GB/T, Type 2 and J1772 — plus custom pairings, lengths and regional variants.
