A2Z EVSE Chameleon Type 2 Wall Charger
220–240V AC (1-ph) / 380V AC (3-ph) · 7 kW / 11 kW / 22 kW
On request

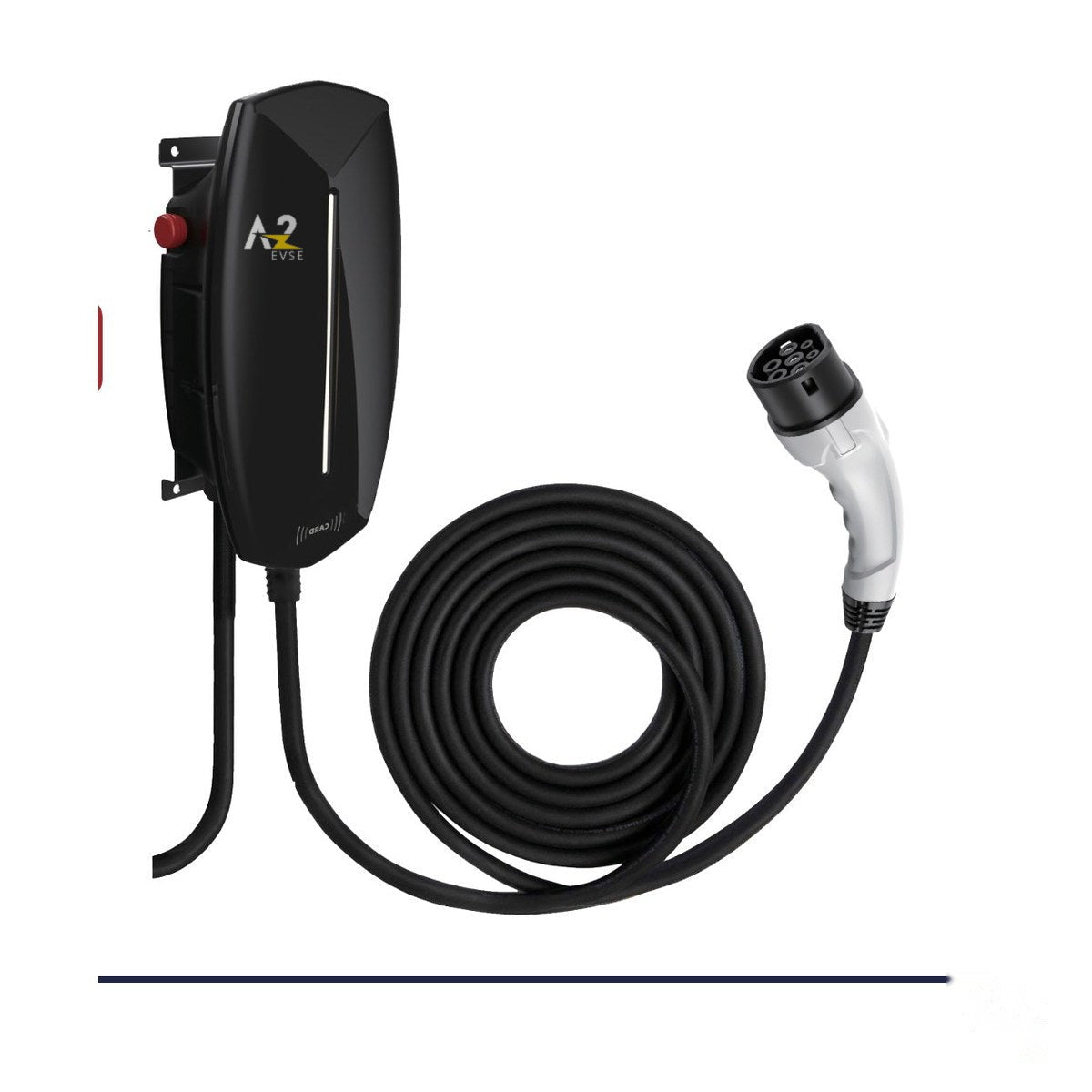

A2Z EVSE Thunderbolt Wall-Mounted AC Charger
Wall or Column Mount · GB/T, J1772, Type 2, NACS
Dealer pricing on request
- Input
- 220V AC ±20% (1-phase) / 380V AC ±20% (3-phase)
- Max input current
- 16A / 32A
- Output power
- 3.5 / 7 kW (1-ph) · 11 / 22 kW (3-ph)
- Every unit electrically and physically tested before it ships
- Real people on the phone — no bots
- Ships domestically from US and Canadian warehouses
- Private label, packaging and custom lengths for dealers
Wall- or column-mounted AC charger from 3.5 to 22 kW, with GB/T, J1772, Type 2 or NACS connectors.
- Input: 220V AC ±20% (1-phase) / 380V AC ±20% (3-phase)
- Max input current: 16A / 32A
- Output power: 3.5 / 7 kW (1-ph) · 11 / 22 kW (3-ph)
- Features: RFID, 4G, Wi-Fi, LED/LCD (optional)
- Protection: Leakage, over/under-voltage, over-current, short-circuit
- Size: 200×105×375.6 mm
Ideal for: dealers, distributors, fleets and OEM/whitelabel programs.
Quote-only. Request a quote for volume pricing, OEM/whitelabel and lead times.
| Input | 220V AC ±20% (1-phase) / 380V AC ±20% (3-phase) |
|---|---|
| Max input current | 16A / 32A |
| Output power | 3.5 / 7 kW (1-ph) · 11 / 22 kW (3-ph) |
| Cable length | 5 m (customizable) |
| Features | RFID, 4G, Wi-Fi, LED/LCD (optional) |
| Size | 200×105×375.6 mm |
| Protection | Leakage, over/under-voltage, over-current, short-circuit |
Can I get this with my own branding or packaging?
For dealer and distributor programs we can supply private-label housings, colours and packaging. Ask the B2B team for minimums and lead times.
Which vehicles and chargers does it work with?
Read the charger → vehicle path above: the left side plugs into the charger, the right side into the vehicle. AC, DC and V2L paths are not interchangeable. For DC fast charging, also confirm network access in the vehicle’s app.
How do I get the price list and datasheet?
Use Request a quote on this page or call the B2B line. We’ll send the datasheet, current pricing and model guidance for your market.
What warranty and after-sales support is included?
A 12-month manufacturing-defect warranty on adapters, with a real support team by phone. Commercial EVSE warranty terms are confirmed in each quote.
Do chargers support OCPP or app control?
Commercial DC stations support OCPP 1.6 / 2.0. Wall-mounted AC models offer Wi-Fi, 4G, Bluetooth and RFID options depending on configuration.
Support every step of the way
Defect coverage
If a product fails from a manufacturing defect, we repair or replace it — and handle the claim quickly.
Training & materials
Counter guides, product imagery and connector education so your team recommends the right part.
Engineering support
Configuration help for custom lengths, regional plugs and commercial site projects.
