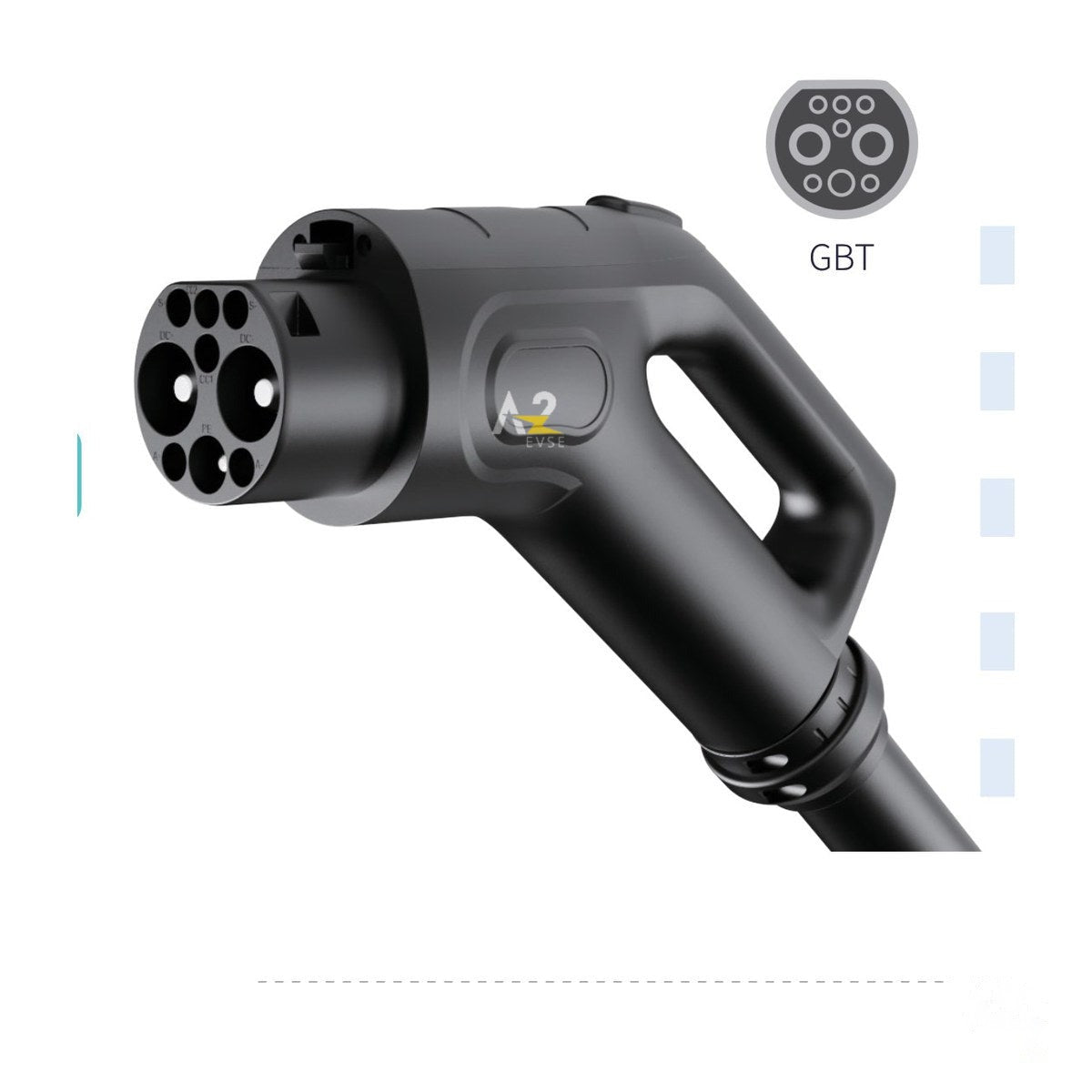

A2Z EVSE Liquid-Cooled DC Gun Cable
Water-cooling series · High-power charging
Dealer pricing on request
- Rated current
- 400A / 500A / 600A / 700A
- Max current
- 600A / 700A / 680A / 900A
- Rated voltage
- 1000V DC
Volume, distributor and OEM / whitelabel pricing. Reply within one business day.
- Every unit electrically and physically tested before it ships
- Real people on the phone — no bots
- Ships from a US warehouse, Canada and China
- Private label, packaging and custom lengths for dealers
High-power liquid-cooled DC gun and cable for high-power charging station builds and retrofits.
- Type: Liquid-cooled DC gun cable
- Rated current: 400A / 500A / 600A / 700A
- Max current: 600A / 700A / 680A / 900A
- Rated voltage: 1000V DC
- Cable length: 4 m (customizable)
- E-lock protection: IP67 · 12V DC · ≥3000 cycles
Ideal for: CPOs, distributors and OEM/whitelabel station builds.
Quote-only. Request a quote for volume pricing, OEM/whitelabel and lead times.
| Rated current | 400A / 500A / 600A / 700A |
|---|---|
| Max current | 600A / 700A / 680A / 900A |
| Rated voltage | 1000V DC |
| Withstand voltage | ≥3000V AC |
| Cable length | 4 m (customizable) |
| E-lock protection | IP67 · 12V DC · ≥3000 cycles |
| Terminals | T2 red copper, silver-plated |
| Flame rating | UL94 V-0 |
Can I get this with my own branding or packaging?
For dealer and distributor programs we can supply private-label housings, colours and packaging. Ask the B2B team for minimums and lead times.
Which vehicles and chargers does it work with?
Read the charger → vehicle path above: the left side plugs into the charger, the right side into the vehicle. AC, DC and V2L paths are not interchangeable. For DC fast charging, also confirm network access in the vehicle’s app.
How do I get the price list and datasheet?
Use Request a quote on this page or call the B2B line. We’ll send the datasheet, current pricing and model guidance for your market.
What warranty and after-sales support is included?
A 12-month manufacturing-defect warranty on adapters, with a real support team by phone. Commercial EVSE warranty terms are confirmed in each quote.
Do chargers support OCPP or app control?
Commercial DC stations support OCPP 1.6 / 2.0. Wall-mounted AC models offer Wi-Fi, 4G, Bluetooth and RFID options depending on configuration.
